Elevation changes what a correct HVAC installation looks like — and along Colorado’s Front Range, between roughly 5,000 and 7,000 feet, a system installed “straight out of the box” with factory sea-level settings is quietly mis-set from day one. The air here is about 17–20% less dense than at sea level, which means gas furnaces need derated fuel input and smaller burner orifices, pressure switches need recalibration, and blowers need speed adjustments to move enough air mass. This guide walks through each adjustment so you know what to look for. For the sizing math behind it all — Manual J load calculations with elevation corrections — our complete HVAC sizing guide for Castle Rock covers the calculations in depth.
Why can’t equipment run on factory settings here?

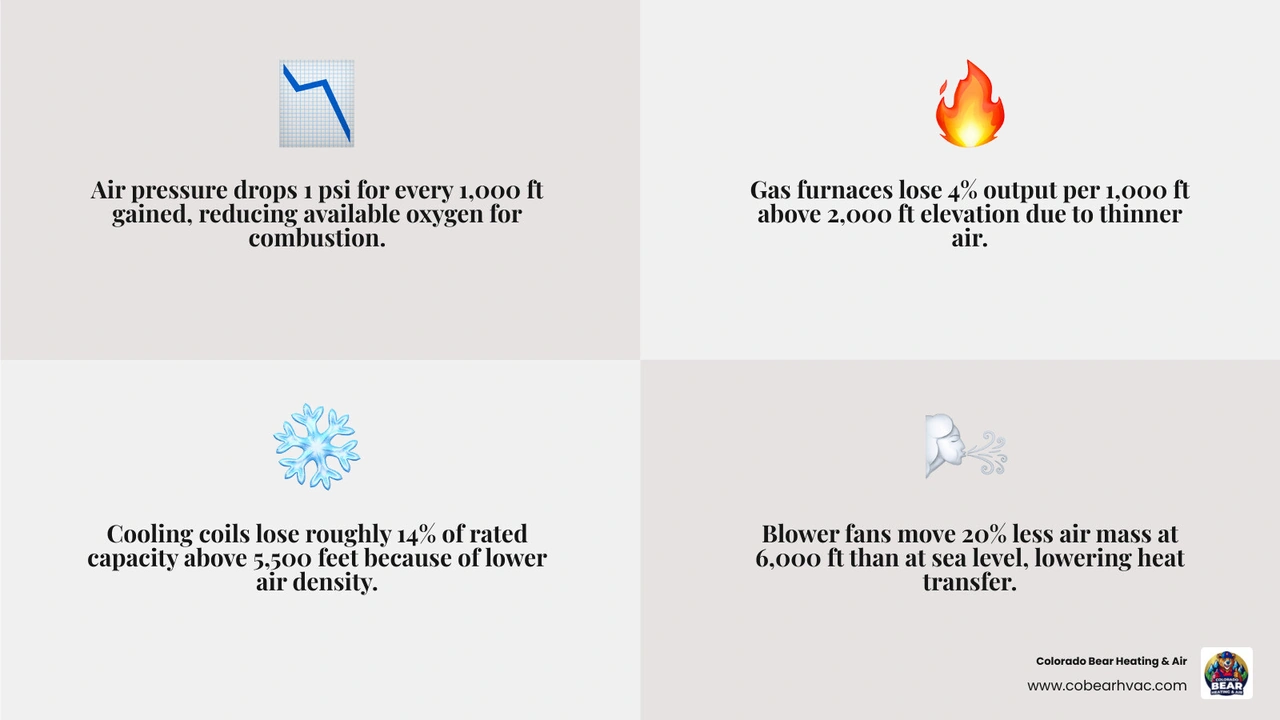

Two physical facts drive everything. First, thinner air carries less heat: a blower spinning at the same speed moves the same volume of air but roughly 20% less mass at 6,000 feet, and mass is what delivers heating and cooling to your rooms. Second, thinner air contains less oxygen: a gas burner calibrated for sea level tries to burn more fuel than the available oxygen can combust cleanly. Every adjustment below exists to correct one of those two problems.
What adjustments does a gas furnace need?
- Derating. The National Fuel Gas Code (NFPA 54) requires reducing fuel input 4% per 1,000 feet above 2,000 feet. A furnace rated at 100,000 BTU input delivers meaningfully less usable heat at Front Range elevations — which must be planned for in sizing, not discovered in January.
- High-elevation conversion kits and orifices. Smaller burner orifices and adjusted gas manifold pressure restore a clean fuel-to-air ratio. Skipping this causes lazy yellow flames, soot buildup, and elevated carbon monoxide risk.
- Pressure switch recalibration. Modern furnaces verify safe venting with pressure switches calibrated for sea-level barometric pressure. At our elevation they can fail to close, producing the classic symptom of a furnace that clicks and locks out on cold nights. High-elevation switches fix it.
What about air conditioners and heat pumps?
Cooling equipment doesn’t burn anything, but it still suffers: the outdoor condenser relies on air molecules to carry heat away from its coils, and with fewer of them, coils lose roughly 14% of rated capacity above 5,500 feet. The system compensates by running at higher internal pressures, which strains compressors, and indoor coils can freeze when reduced air mass lets them drop below freezing. The practical fixes are honest capacity math at selection time and blower speed adjustments so air conditioning equipment moves the extra airflow volume our elevation demands — provided the ductwork can handle it without excessive static pressure.
What happens when these steps get skipped?
The failure pattern is consistent: a furnace that seems underpowered every cold snap, soot or CO alarms, a furnace that short-clicks without igniting, an AC that runs constantly on hot afternoons, and equipment that wears out years early because every component works overtime. Most of these homes don’t have defective equipment — they have sea-level commissioning at 6,000 feet. If your system has never had an elevation-specific checkup, that’s the first thing worth verifying.
What should you ask an installer to show you?
A competent Front Range installation includes an elevation-corrected Manual J load calculation (the method is detailed in the full sizing guide), a manufacturer-approved high-elevation conversion kit on gas equipment with manifold pressure verified by manometer, pressure switches rated for local conditions, and documented blower/airflow settings. Colorado Bear Heating & Air’s NATE-certified technicians perform and document each of these steps on heating system installations as standard practice, with upfront, no-hidden-fee pricing. If you’d like your current system’s calibration checked, the team offers free estimates at (720) 790-3765.
